Contours

CONTOURS

available with license

Cut topo mesh contours quickly.

INPUTS

• topo mesh : Mesh describing topography

• step : Step size for cutting contours. Default >> 2ft

• spacing : Input Options determine behavior: Op1.Number describing anno spacing along contour. Op2.Cross-curves for anno locations Op3. None for no annos. Default = None

OUTPUTS

• contours : Polylines representing contours cut from the mesh at each elevation.

• elevations : Value of each contour elevation in a similar data tree structure

• anno planes : Planes for annotation along each contour elevation. If spacing is None, this will be empty.

---

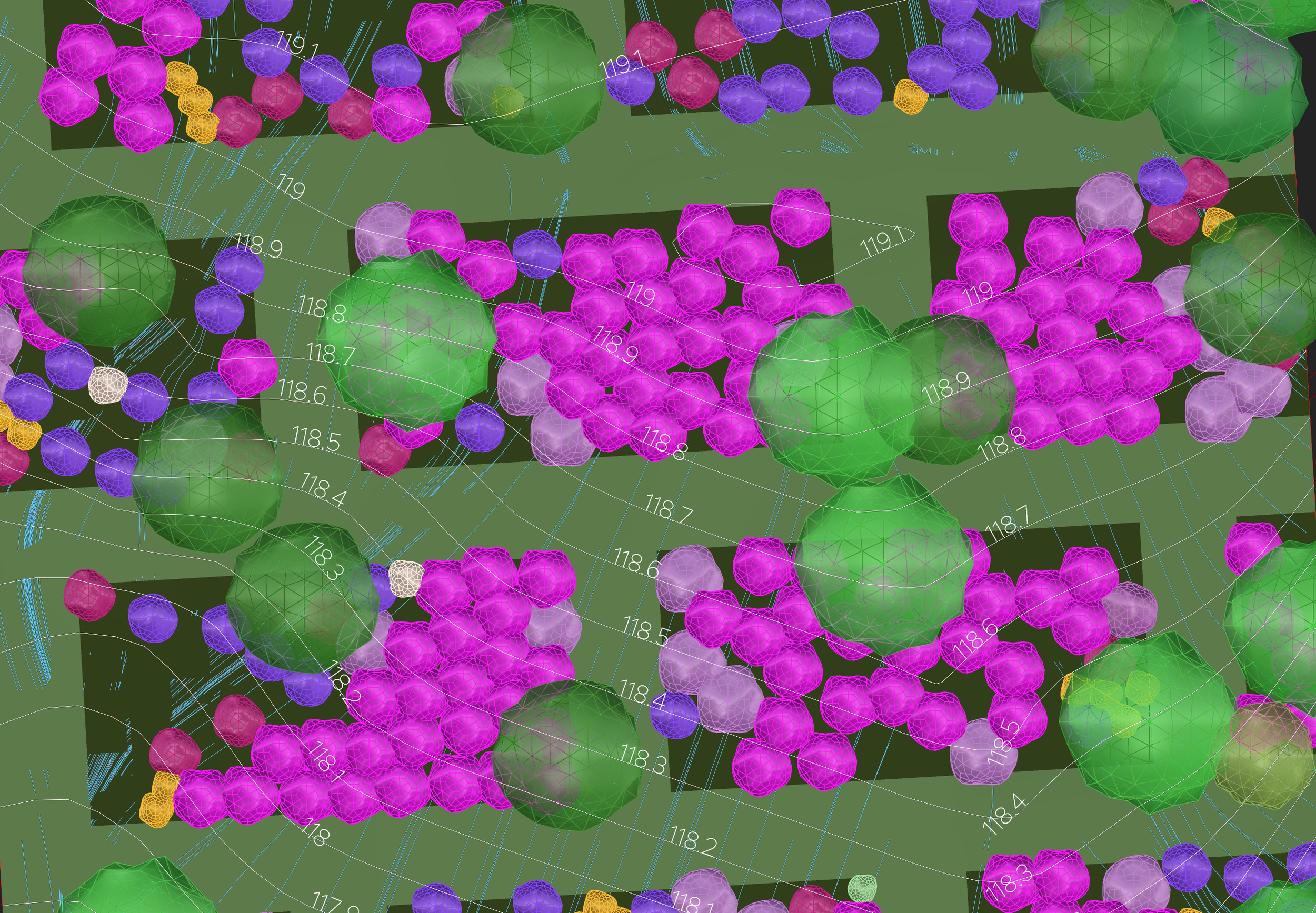

Cut and Label Contours that update with Bake Text Component. With any font. While you design.
